2-inch Touch Screen Wireless Remote Control with 600lb Electric Magnetic Lock for Outswinging Door Entry Access Control System

2-inch Touch Screen Wireless Remote Control with 600lb Electric Magnetic Lock for Outswinging Door Entry Access Control System



Describe

• The main feature of HBK-R04T is it allows you to open the door simply by pressing the wireless remote and smartphone instead of moving to the door physically when someone visits.
• Specialized for the access control system and unable to be applied to other fields.

Features

• Support connecting external access control keypad. (Remark: Access control keypad is excluded.)
• 2″ touch screen to complete all settings, making the operation easier.
• Built-in buzzer makes sound to remind people when the door is locked or unlocked. The buzzer status could be set according to your needs.
• Built-in WiFi module which enables you to remotely control the HBK-R04T via free Tuya Smart APP.

Specifications

Remote Control

• Input Voltage: 12VDC
• Output Current: 1A
• Operating Environment: Indoor
• Transmitter Support: Max. 40
• Lock Output Port: 1
• Exit Button Output Port: 1
• Keypad Connection Port: 1
• Remote Operating Distance: 100 Feet Without Block
• Operating Method: RF Remote and WiFi
• Remote Frequency: 433.92MHz
• WiFi Standard: 2412-2462MHz
• Remote Channel: 1
• Operating Mode: Momentary / Toggle
• Ambient Temperature: 32°F-113°F
• Ambient Humidity: 20%RH-80%RH
• Dimensions: 3-37/64″x 2-21/64″x 1-9/64″ (91x59x29mm)

Remote Transmitter

• Operating Voltage: 6VDC
• Batteries Type: CR2016 (Built-in)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433.92MHZ
• Button: 1
• EncodingType: Fixed code
• Enclosure Material: Plastic
• Dimension (LxWxH): approx. 2-9/32″x1-19/64″x15/32″ (58x33x12mm)

Electric Magnetic Lock

• Collinear load test 280kg / 600lbs
• Input Voltage: 12VDC
• Output Contact: NO/NC/COM
• LED: Red shows locked; Green shows unlocked
• MOV provides reverse current protection
• Cover Finish: Anodized aluminum
• Lock Finish: Zinc
• Armature Plate Finish: Zinc
• Surface Temp: Less than +50℃ / 122℉
• Suitable: Wooden door, glass door, metal door, fireproof door

Push to Exit Button

• Dimensions (LxWxH): 3-35/64″x1-3/8″x1-3/64″ (90x35x26.5mm)
• Standard Structure: Stainless steel panel, steel button
• Mechanical Life: 500000 tests
• Current Rating: 3A@36VDC Max.
• Output Contact: NO/COM
• Operating Temp: 10℃～55℃(14℉-131℉)
• Operating Humidity: 0-95% (relative humidity)
• Panel Material: Stainless steel panel, wire drawing finished

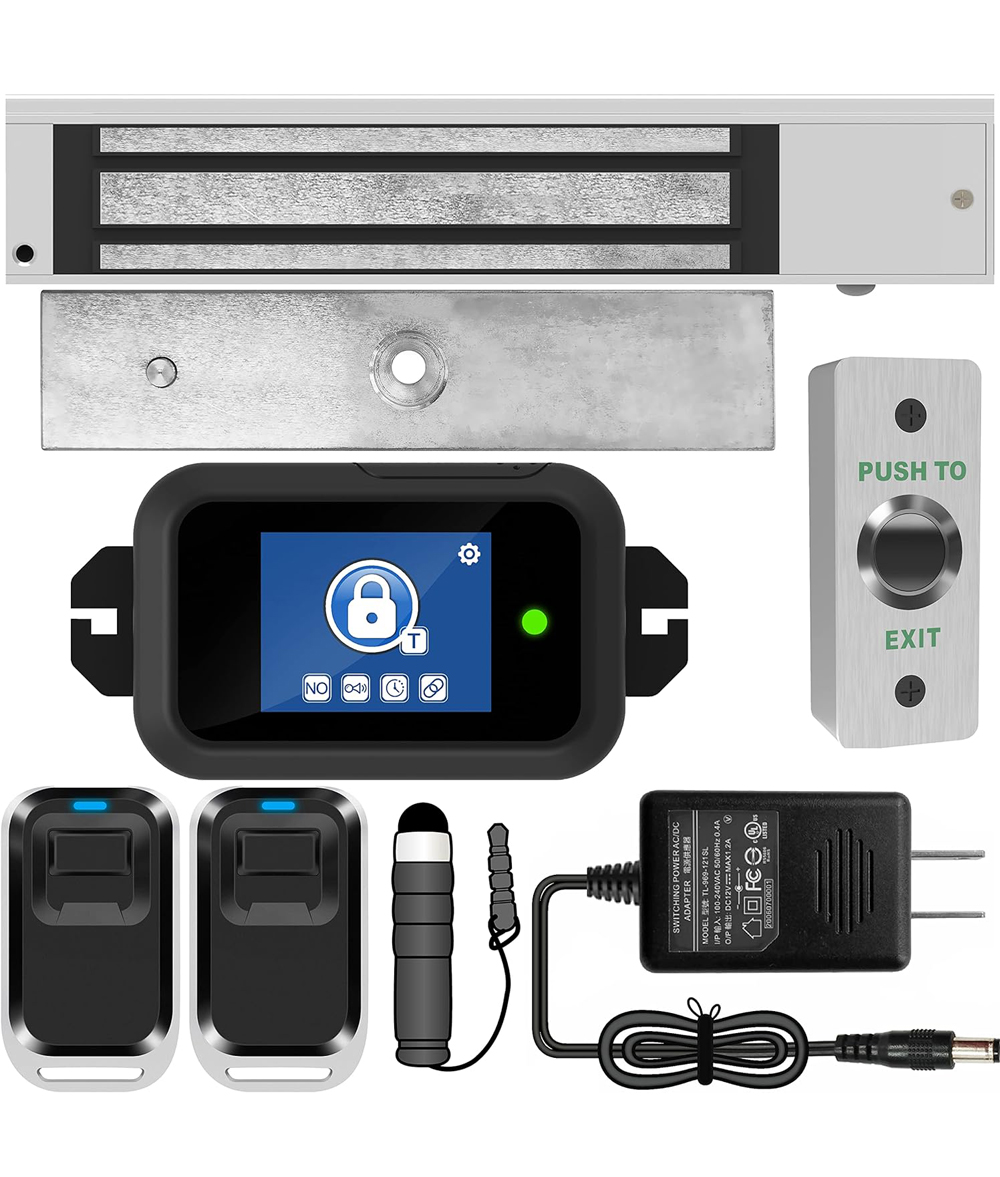

Packing List

• HBK-R04T Remote Control x 1
• HBK-T01 Remote Transmitter x 2
• Electric Magnetic Lock x 1
• Power Adapter x 1
• Push to Exit Button x 1
• Stylus Pen x 1
• English User Manual x 1
