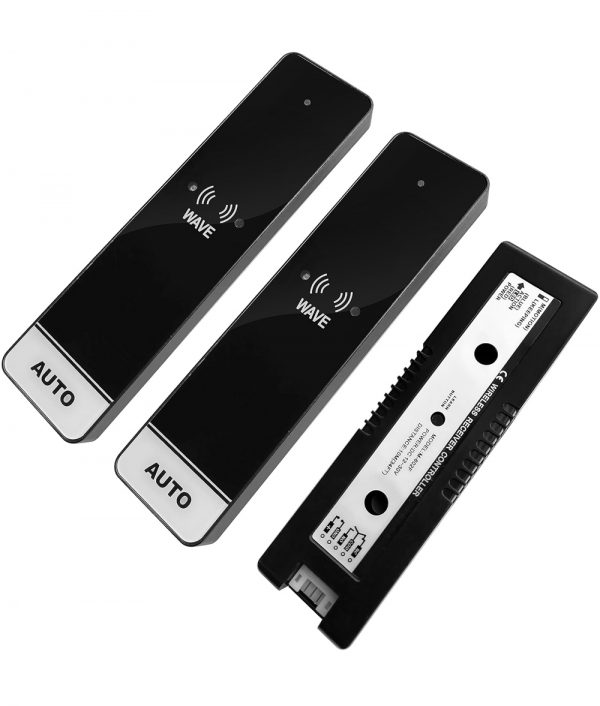

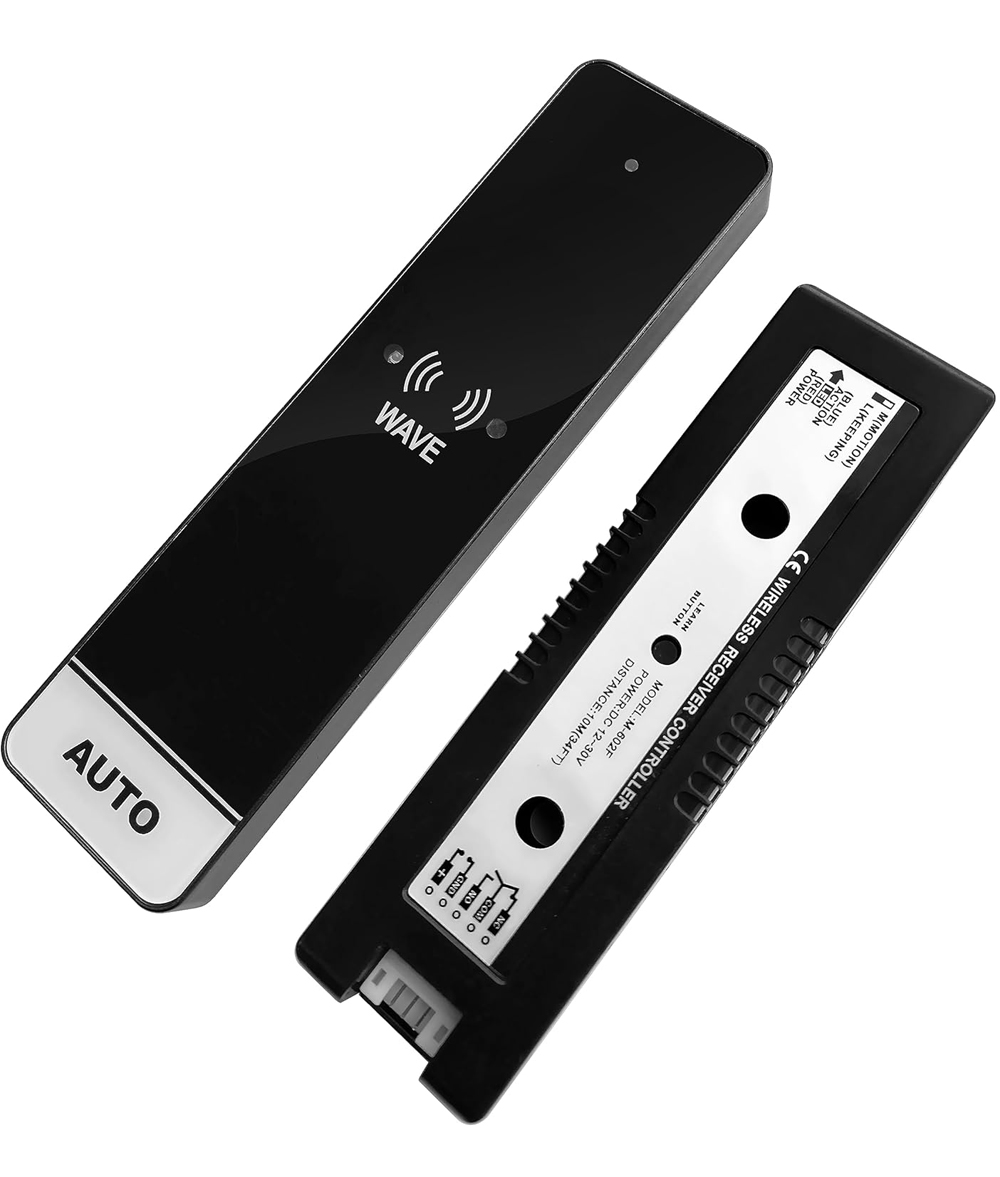

2.4G Wireless Infrared Inductive Touch-Free Switch for Auto Door System

2.4G Wireless Infrared Inductive Touch-Free Switch for Auto Door System

Features

• Rectangular panel, wireless design, installation without wiring, more flexible.
• Infrared modulation is used for sensing, with a long sensing distance and high sensitivity. The sensing distance is adjustable from 3 to 18cm and can be adjusted for different occasions.
• Adopt 2.4G wireless communication technology, good frequency consistency, high wireless transmission reception stability.
• The transmitter adopts low-power transmission technology, with long range, low power consumption and long battery life.
• The receiver adopts self-learning code, which is convenient for users to ass hand switch at any time.
• Receiver adopts wide voltage input design, 12-30V AC/DC power input are valid.
• The blue indicator is on when remote control is valid.

Specifications

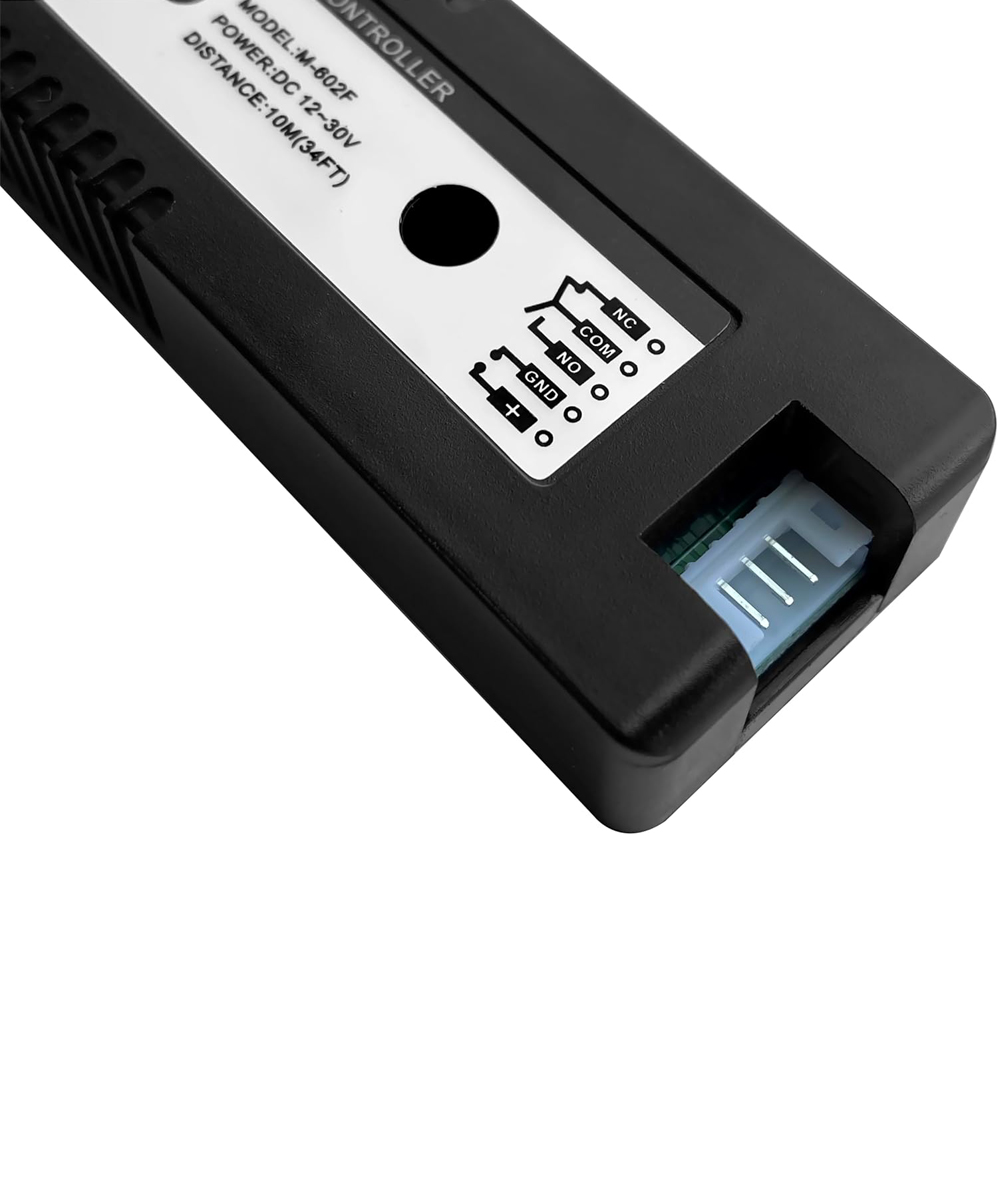

• Wireless Receiver:
• Power Supply: DC12-30V
• Static Current: 34mA (DC12V)
• Action Current: 62mA (DC12V)
• Main Contact Capacity: 1A 24VDC
• Contact Suction Holding Time: 1.5 Seconds
• Size (LxWxH): 110x30x15mm / 4-21/64″x1-3/16″x19/32″
• Transmitter:
• Power Supply: 3V (2 pcs 3V button battery)
• Standby Current: ≤22μA (M mode); 40μA (K mode)
• Emission Current: ≤10μA
• Touchless Sensing Distance: 3-18cm
• IR Scan Interval: M mode: 300ms; K mode: 250ms
• Battery Life (for Transmitter): 200 times/day, about 190 days
• Receiver Sensitivity: -95dbm
• Emission Distance: Over 30 meters in no obstacles area
• Size (LxWxH): 135x36x10mm / 5-5/16″x1-27/64″x25/64″

Packaging List

• 1 x Receiver
• 2 x Transmitter
• 1 x User Manual
