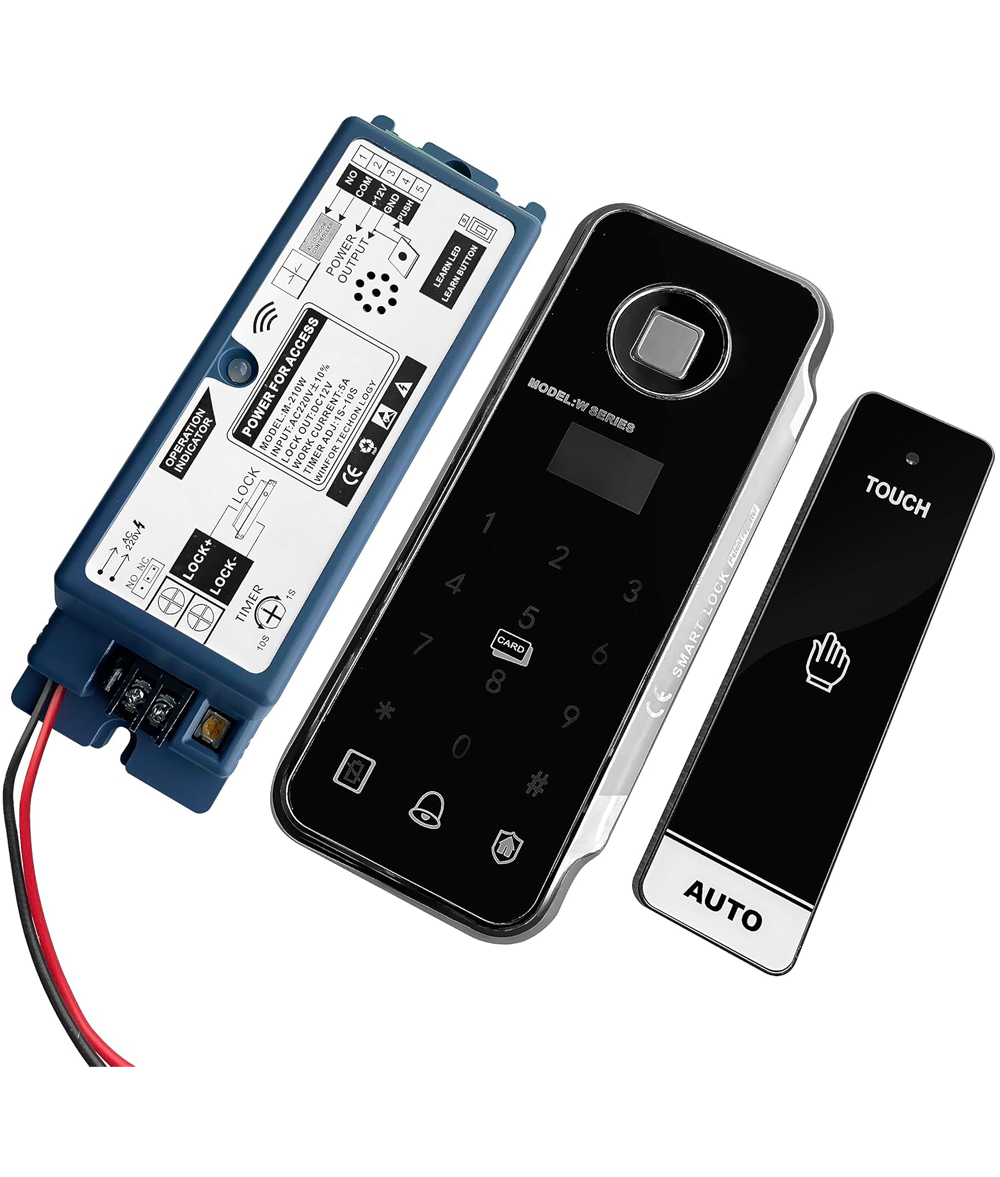

2.4G Wireless Access Control Kit Including Fingerprint Attendance Control Machine Hand Touch Switch Power Controller

2.4G Wireless Access Control Kit Including Fingerprint Attendance Control Machine Hand Touch Switch Power Controller

Specifications:

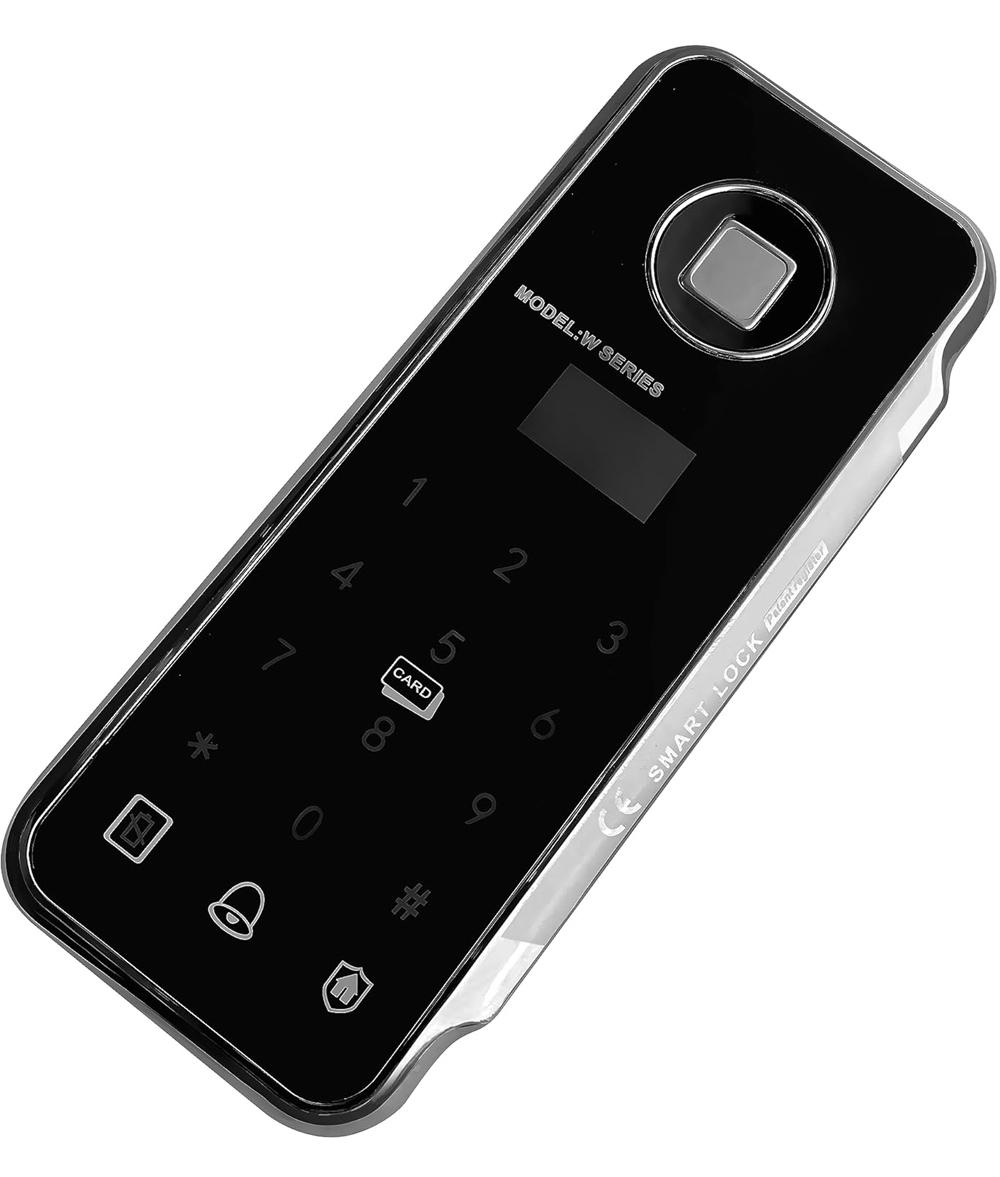

Wireless Fingerprint Attendance Control Machine

• Working Mode: 2.4G wireless code alignment
• Working Voltage: 4.5-6.5V (4pcs A battery)
• Static Current: ≤35μA
• Working Current: 70mA
• User Capacity: 10pcs Administrators, 490pcs users (Fingerprint record: 200pcs)
• Record Capacity: 120,000pcs
• Open Door Method: Fingerprint, card, password
• Fingerprint Sensor: Semiconductor
• FRR: ≤1%
• FAR: ≤0.001%
• Card Type: 13.56MHz IC card
• Password: 6 digits
• Virtual Password: 20 digits
• System Locking Function: Continuously verify 10 times, system locks 2 minutes (Administrator’s fingerprint can unlock)
• Low Power Alarm: Voltage lower 4.8V prompt
• External Emergency Power Supply: Micro USB port
• Working Temperature: -10℃~60℃
• Working Humidity: 20%-90%RH
• Size: 170x71x24mm / 6-11/16″x2-51/64″x15/16″

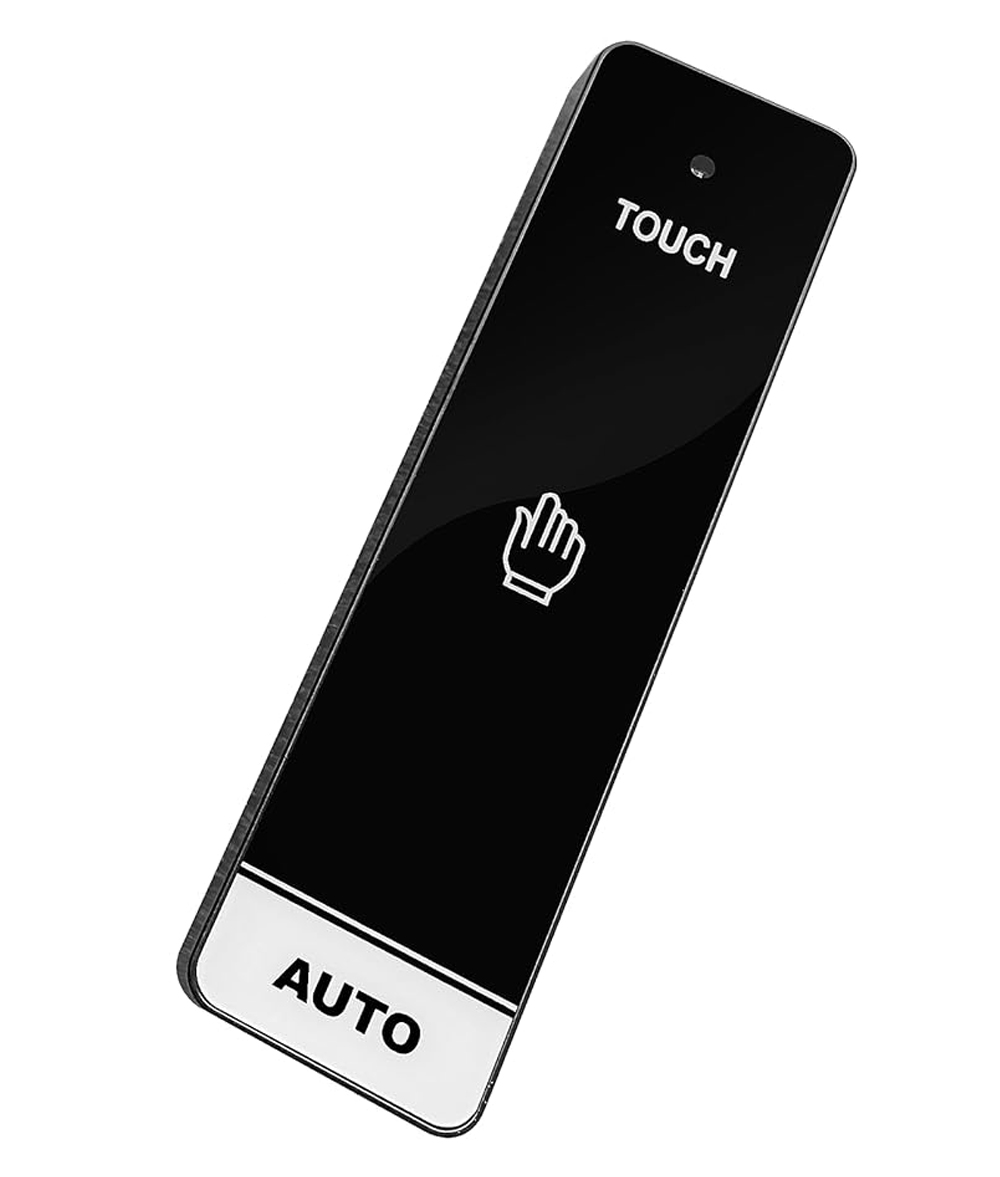

Wireless Hand Touch Switch

• Working Mode: 2.4G wireless code alignment
• Working Voltage: 3V (2pcs CR2032 battery)
• Static Current: ≤10μA
• Working Current: 7.5mA
• Wireless Distance: 30m (open space)
• Working Temperature: -10℃~60℃
• Working Voltage: 20%-90%RH
• Size: 135x36x10mm / 5-5/16″x1-27/64″x25/64″

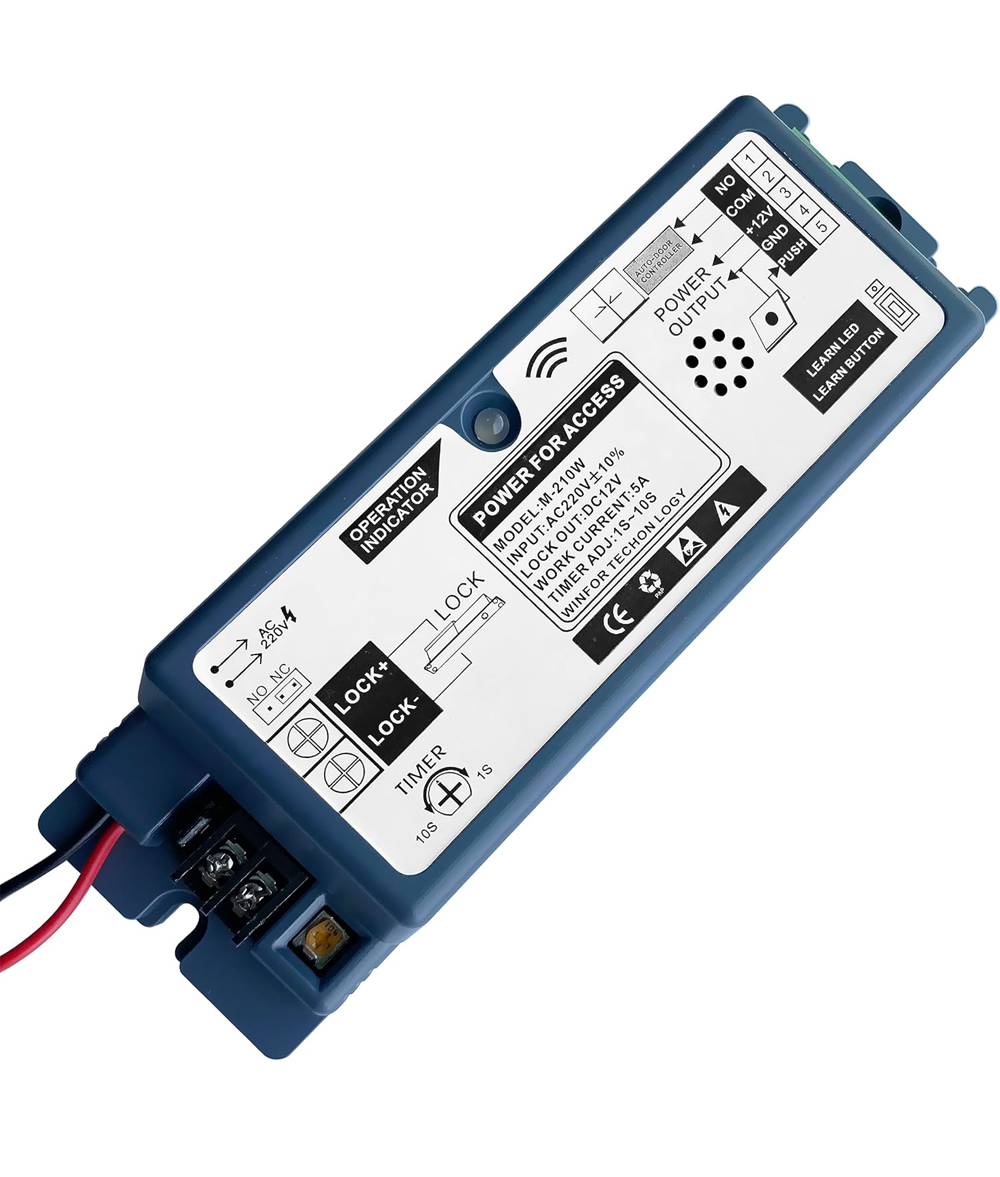

Power Controller

• Working Mode: 2.4G wireless code alignment
• Input Voltage: 220V±10%
• Rated Voltage: 12V±10%
• Rated Power: 60W
• Receiving Sensitivity: -95dbm
• Door Opening Delay Adjustment: 3s-10s
• Time Difference of Unlocking & Opening the Door: 0.5s
• Working Temperature: -10℃~60℃
• Working Humidity: 20%-90%RH
• Size: 176.5×53.5x37mm / 6-61/64″x2-7/64″x1-29/64″

Package List:

• 1 x Fingerprint Attendance Access Machine
• 1 x Hand Touch Switch
• 1 x Power Controller
• 1 x User Manual
